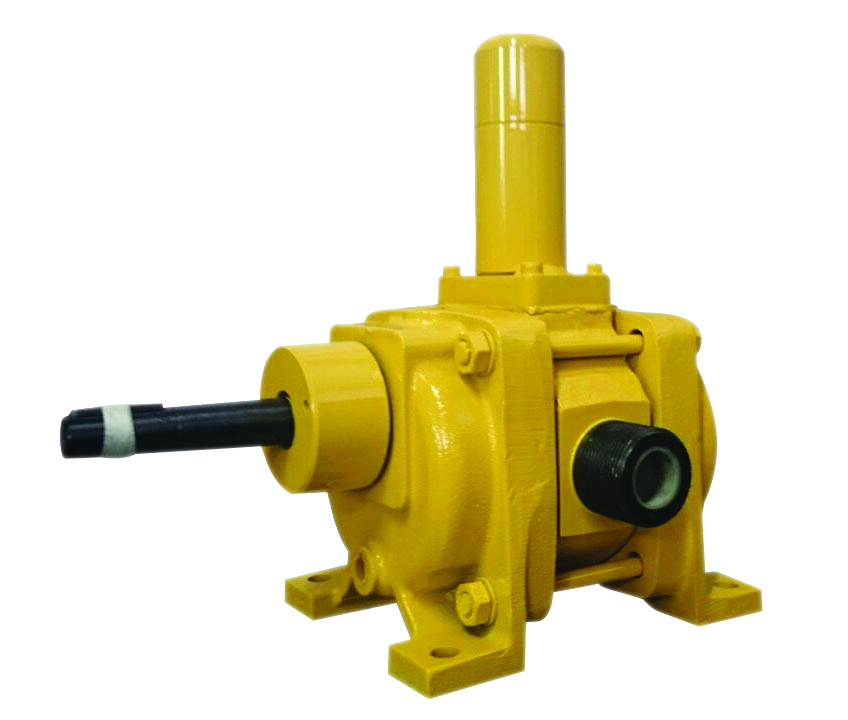

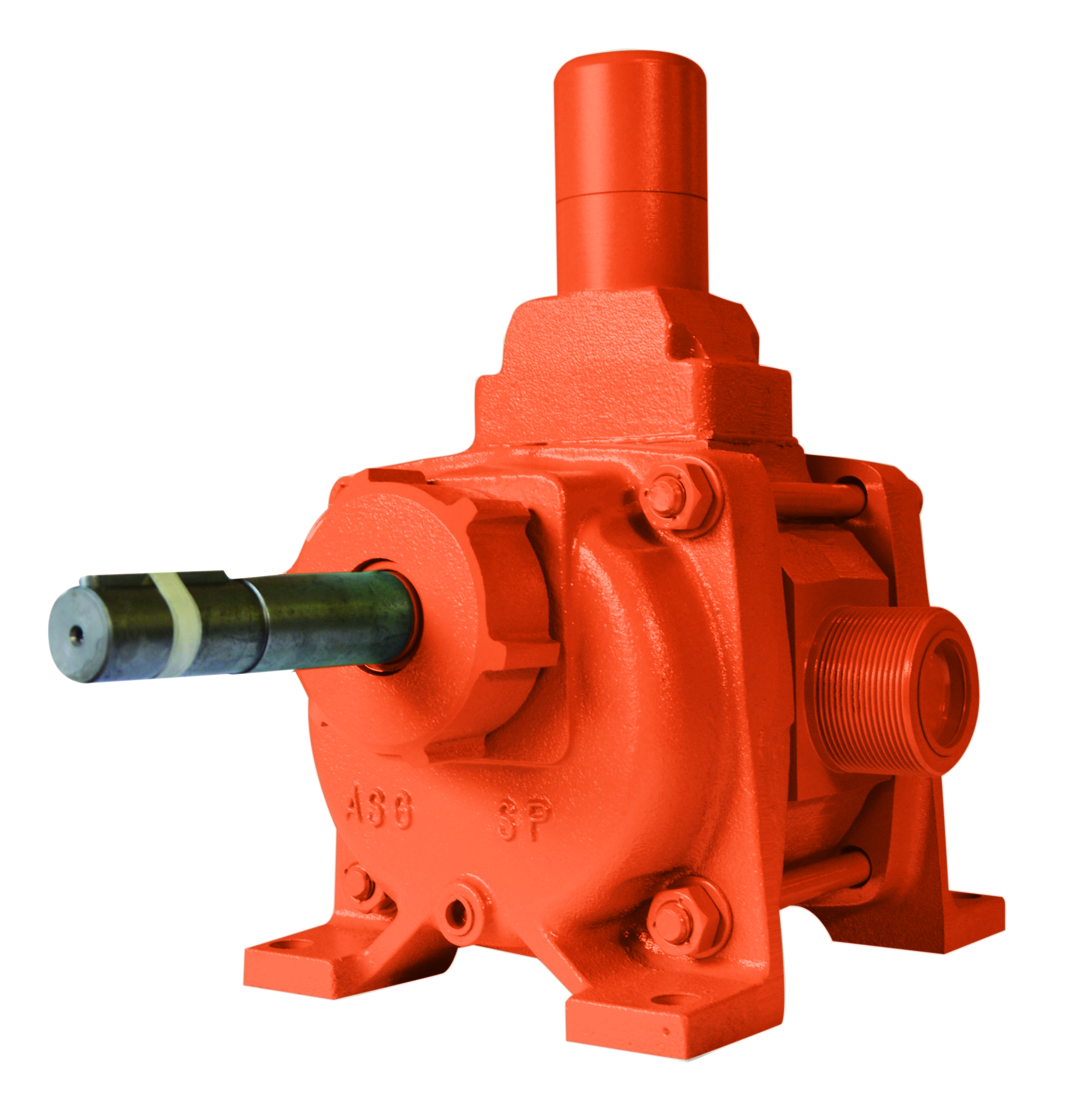

MODEL V

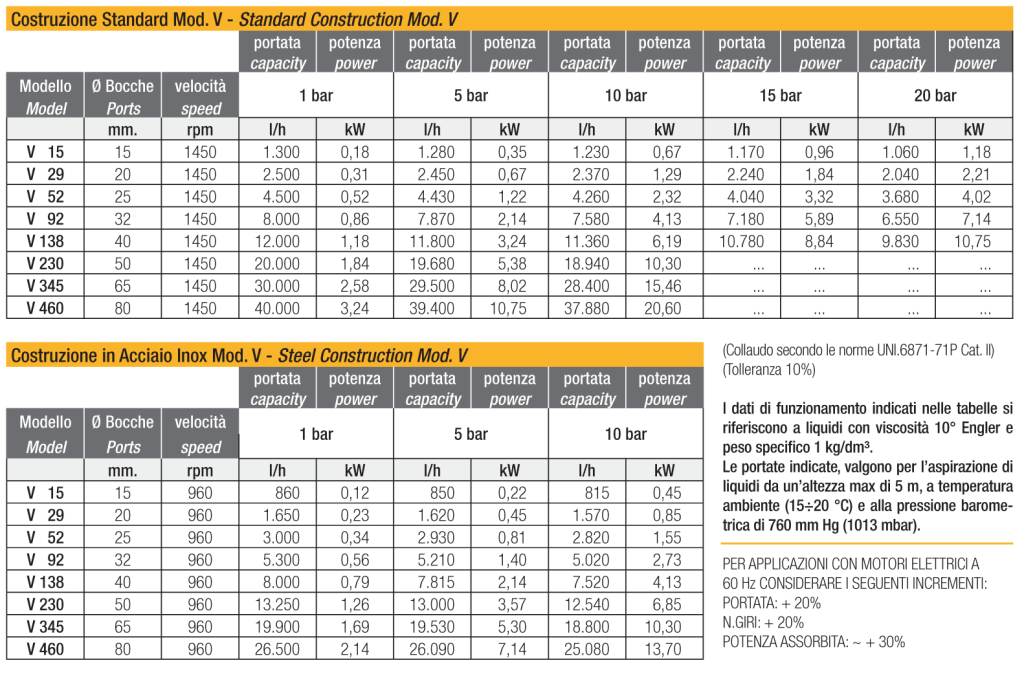

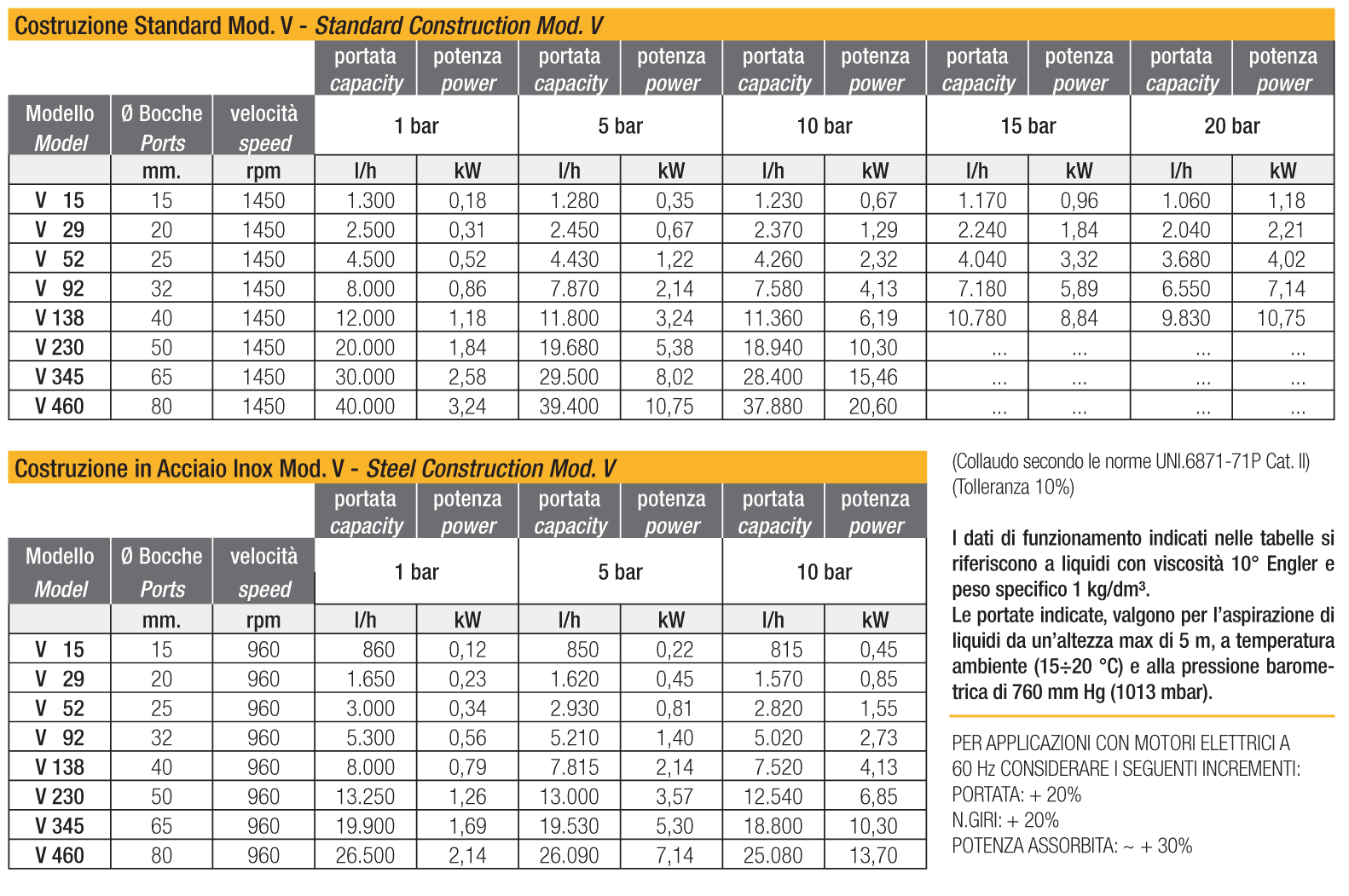

Gilardoni’s gear pumps series “V” are the top of the range, they have structural characteristics similar to the series VSC, but they are enriched by the presence of two shields patented Termoplan that are widely used in the transfer of liquids of low and high viscosity, with ample delta temperature thanks to the particular design feature patented that allows to heat or cool used fluids, the fluids, within the chambers of heating or cooling, must have a pressure not higher than 6 BAR. This pump is able to work up to 20 bar pressure AT 1450 rpm, with the option bypass valve. It’s available in two versions: cast iron and steel.
